【自动天花板封边机】基本说明
产品标题：自动天花板封边机
产品别名：封边机、天花板封边机
产品型号：LTDN652506
工作功率：3KW
工作电压：220V
封边速度：30片/分钟
尺寸：5100*750*800mm
形状：Z字型
【Automatic Edge Banding Machine 】GENERAL INFORMATIONS
Name: Automatic Edge Banding Machine for Gypsum Ceiling
Another Name: Edge Banding Machine
Brand Name: LUOTAIDINA
Minimum Order: 1 set
Driven Type: electric
Condition: brand new
Weight: 560kg
Voltage: 380V
Power: 4kw
Certification: CE
Model:LTDN652506
Place of Origin: Linyi China(Mainland)
Minimum Order: 1 set
Rated Power:2.5KW
Speed:30 pieces/min
Size: 5100*750*800mm
Weight: 470Kg
Shape: Z series
Payment term: T/T,L/C

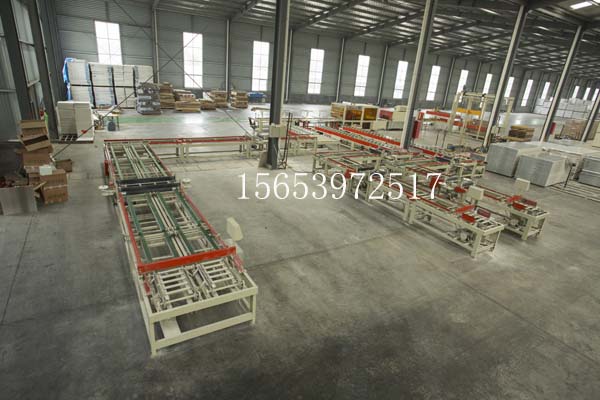

Automatic Edge Banding Machine is used to seal the four edges of gypsum laminated ceiling.
Specific working process is as follow:
1. Boards feeding. There is a baffle plate. The space beneath plate only allow one board to
pass.(Note: if connected with cutting machine, one worker is saved here.)
2. First banding. Two edges are banded. There are special blades for cutting adhesive tape.
The distance of two boards are close , so tape wasting is avoided.
3. Changing direction. When one board goes forth and reaches the turning point, the supporting
frame will go down( there is an electromagnet ), then the board falls on the right- driving conveyor belt.
4. Second banding. The same as step 2.
5. 8 /10 pieces ceiling board are piled.(Note: if connected with automatic packing machine, one
worker is saved here.)
* The whole process is controlled by PLC
*All parameters could be set by PLC. Such as how many pieces board can be stacked as a pile, make an
action of moving,feeding, turning etc.
* There are 10 detectors distributed over this machine to ensure the effective operation and keep the
machinery system getting along well.
【Automatic Edge Banding Machine 】APPLICATION
Suitable for all kinds of sheets banding. This sealing machine is designed for gypsum ceiling .
【Automatic Edge Banding Machine 】PERFORMANCE FEATURE
1.when sealing, the distance between two boards is about 2 cm. It can effectively reduce tape- wasting
and make products look nice.
2. With many detectors, the whole machine will stop when an error is found. It will reduce damage to
products. The transfer speed of each part is adjustable in order to guarantee the stability and smooth
of the whole edge banding process.
3.This machine is easy to operate. Workers can be trained well in a short time.
4.Can replace manual work.
